FIELD EOC TERMINAL


Product description:

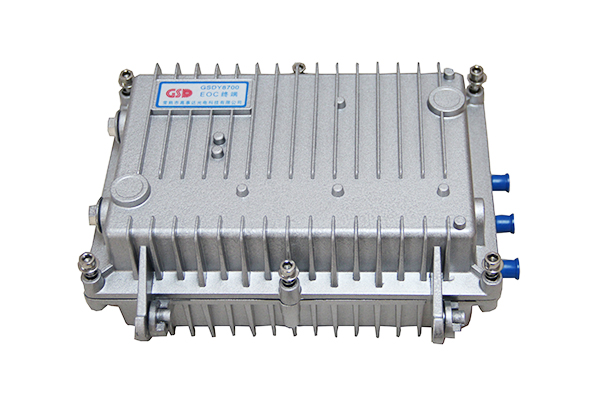

GSDY8000 field EOC terminal equipment (hereinafter referred to as the wild cat) can coax the data signal with the camera via the network cable connection for remote RF monitoring. GSDY8000 to AC60V power supply, support 1 channel mixed-signal inputs, 2-4 RJ45 outputs.


Features:

AC60V power supply with cable, resolve to take power problems.

You can connect up to four cameras.

Internally the two camera power supply.

Switching power supply Optional 12V / 2.5A or 12V / 5A.


Technical Parameters:


Project

Performance parameters

chipset:Qualcomm(Atheros)AR7411

Data characteristics

Protocol Group

HomePlug AV/IEEE802.1Q,IEEE802.1p,IEEE802.3,
IEEE802.3u,IEEE802.3x/HTTP,SNMP,TELNET

Physical layer rate

600 Mbps

Throughput

300 Mbps

Modulation frequency

7.5-65MHz

Support the maximum number of terminals

256

Modulation

OFDM1155carriers 4096/1024/256/64/16/8-QAM、
QPSK
、BPSK

Encryption mode

128-bit AES encryption

VLAN

Support 4K VLAN number

Port speed

Support a minimum granularity 64Kbps

QOS


VLAN Priority Support/Support TOS and COS packet classification/Support DSCP priorities

Operating mode

TDMA/CSMA

Multicast support

Support IGMP managed multicast sessions

Management Information

Support SNMP, WEB, a variety of management CLI

Emission power

100-120dBuV

Chipset: Morningstar MSE510

Data characteristics

Protocol Group

IEEE 802.3/802.3u/802.3x /802.1Q/802.1p

Transmission rate

500 Mbps

Throughput

300 Mbps

Modulation frequency

7.5-65MHz

Support the maximum number of terminals

256

Modulation

OFDM modulation noise immunity,
QAM-1024/256/64/16 / 8QAM / BPSK / QPSK / ROBO adaptive

Encryption

128-bit AES data encryption

VLAN

802.1Q VLAN, port isolation, supports 4096 VLAN ID

Port speed granularity

Respectively upstream and downstream port speed,
the speed limit 64kbps granularity

QoS

802.1p support a total of eight priorities 0-7

Operating mode

TDMA+CSMA

Multicast support

IGMP proxy & Snooping multicast group number: 12

Management Information

Support SNMP, WEB, a variety of management CLI

Emission power

100-120dBuV



Access

PPPoE + Radius DHCP or fixed IP address

RF characteristics

Return Loss

16dB

Insertion Loss

<1dB108-862MHz

Total power consumption

6W

Wild cat by seven control LED displays Ethernet connections, coaxial and power:

LED lights

color

Status

Explanation

Power

green

dim

Power is not turned on

Steady

Power Good

Lan1-4

green

dim

Ethernet port is unconnected

Glisten

Ethernet port data transceiver

bright

Ethernet port is connected to a non-communication status

Loop

green



Boot the system self-test light

Link

dim

Cable is unconnected

bright

Cable has a data transceiver

bright

Cable is connected non-communication status

Ordering Guide:

GSDY8

0

00-0

Gaoshida EOC top box built-in module type

7: AR74 chip
8: MSE510 chip

00: a mixed signal inputs 00-1: a mixed-signal input port,
A mixed signal output port

Example: GSDY 8700, AR74 chip.
